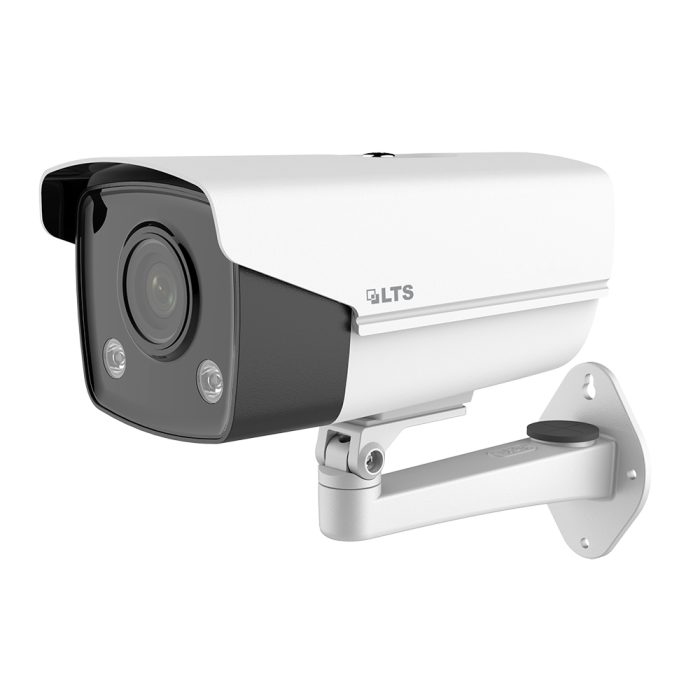

4 MP Color247 Fixed Bullet Network Camera

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Min. Illumination

0.0014 @ F1.0 (1/30 s, AGC ON), 0.002 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Focal length

4 mm

Focus

Fixed

Aperture

F1.0

FOV

4 mm, horizontal FOV: 89°, vertical FOV: 46°, diagonal FOV: 107.5°

Lens Mount

M16

Auto-Iris

No

DNR

3D DNR

Wide Dynamic Range

120dB

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°

Compression Standard

Video Compression

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps


Max. Resolution

2560 × 1440

Main Stream

50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 24fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third stream

50Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240)

60Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240)

Image Enhancement

BLC/3D DNR/HLC/Defog

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

ROI (Region of Interest)

No

Network

Network Storage

Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

General Function

One-key reset, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI
