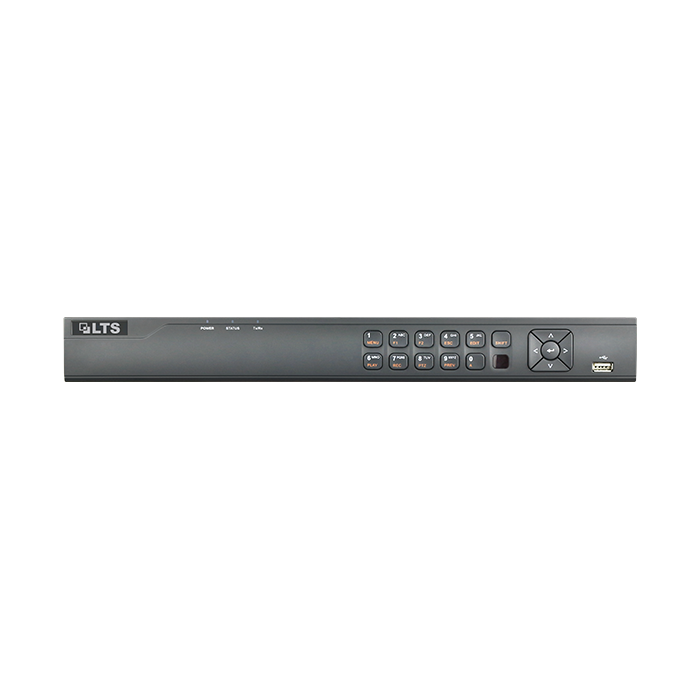

main product photo

Platinum Advanced Level 8-Channel HD-TVI DVR

Be the first to review this product
Call for Price
In stock
SKU
LTD8308T-EA
In Stock
Show more Show less
Wish List Compare
  • 8 Channel HD-TVI DVR
  • Supports Live Viewing, Storage, Playback up to 8 TVI / Analog Cameras + 2 IP Cameras
  • Up to 1080p (1920 x 1080) HDMI Video Output
  • CVBS Output
  • 2 x SATA up to 16 TB each HDD
  • Up to 1080p @ 30 fps with "Efficient Mode" on
  • H.264 / H.264 Zip+
  • Alarm in / out: 8 / 4
More Information
Specifications
VIDEO/AUDIO INPUT
Video Compression H.264 Zip+/ H.264
Video Input 8 ch
BNC (1.0 Vp-p, 75 Ω) PAL / NTSC self-adaptive
IP Input 2 chs (Support ONVIF, up to 2MP resolution)
Audio Compression G.711 u
Audio Input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-Way Audio Input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
VIDEO/AUDIO OUTUPUT
HDMI / VGA Output 1920 x 1080
CVBS output 1 ch, BNC (1.0 Vp-p, 1 kΩ)
Frame Rates Main stream:1/16 fps to real time frame rate
Sub-stream: WD1 / 4CIF @ 12 fps, CIF / QVGA / QCIF @ real time frame rate
Video Bit Rate 32 Kbps - 6 Mbps
Audio Output 1 ch, RCA (Linear, 1 kΩ)
Audio Bit Rate 64 Kbps
Dual Stream Supported
Stream Type Video, Video & Audio
Synchronous Playback 8 ch
NETWORK
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP™, HTTPS, ONVIF
HARD DRIVE
SATA 2 x SATA
Capacity Up to 8 TB HDD
EXTERNAL INTERFACE
Network interface 1 x 10/100 Mbps self-adaptive Ethernet interface
Serial interface RS-485, Keyboard
USB Port 2 x USB 2.0
Alarm In / Out 8 / 4
GENERAL
Power supply 12 V DC
Consumption ≤ 20 W
Operating Temperature 14° to 131° F  (-10° to 55° C)
Operating Humidity 10% ~ 90%
Chassis Compact 1U Chassis
Dimensions
(W x D x  H)		 15 x 12.6 x 1.8 in. (380 x 320 x 45 mm)
Weight ≤ 4.4 lb  (2 kg)
SKU LTD8308T-EA
Recorder Technology TVI DVR
Recorder Case 1U Case
Recorder Series Platinum Series
Recorder Channel 8-Channel
LTD8308T-EA Quick Start Guide (4.17 MB)
LTD8308T-EA User Manual (12.30 MB)
LTD8308T-EA Spec Sheet (2.13 MB)
